| Endurance |
1.5L+E-DHT 60km |
1.5L+E-DHT 60km |
1.5L+E-DHT 140km |
1.5L+E-DHT 140km |
1.5L+E-DHT 140km |
| Configuration name |
60km Sailing version EM-i |
60km Discovery EM-i |
140km Voyager EM-i |
140km Explore + edition EM-i |
140km Starship EM-i |
| Basic parameter |
|
|
|
|
|
| Energy type |
Plug-in hybrid |
| Overall dimensions (mm) |
4782*1875*1489 |
| Wheelbase (mm) |
2752 |
| Tank capacity (L) |
60 |
| Service weight (kg) |
1570 |
1700 |
| Maximum load weight (kg) |
1970 |
2100 |
| Power/chassis system |
|
|
|
|
|
| Engine type |
Raytheon 1.5L hybrid engine |
| Displacement (cc) |
1499 |
| Maximum engine power (kW) |
82 |
| Maximum engine torque (N·m) |
136 |
| Engine thermal efficiency |
0.465 |
| Variable speed system |
E-DHT intelligent stepless 11 in 1 hybrid electric drive |
| Motor type |
Permanent magnet synchronous motor |
| Motor peak power (kW) |
160 |
| Motor peak torque (N·m) |
262 |
| CLTC Battery life (km) |
60 |
140 |
| CLTC loss fuel consumption (L/100km) |
2.9 |
2.98 |
| Maximum speed (km/h) |
180 |
| Battery type |
Lithium iron phosphate battery |
| Fast charge time 30%-80% (min) |
– |
20min |
| Slow charge time (h) |
2.7 |
6 |
| External discharge |
support |
| Driving mode |
front-drive |
| Driving mode |
Intelligent mode, pure electric mode, performance mode, extended range mode |
| Suspension system |
Front: McPherson independent suspension with subframe/Rear: Rear Type E multi-link independent suspension with subframe |
| Steering system |
EPS electric power steering system |
| Brake (front/rear) |
Front: ventilated tray/Back: solid tray |
| Energy recovery |
Adjustable braking energy recovery system |
| Emission standard |
Country VI b |
| Inductance modeling |
|
|
|
|
|
| LED headlight |
● |
● |
● |
● |
● |
| Automatic headlight |
● |
● |
● |
● |
● |
| LED daytime running lights |
– |
– |
● |
● |
● |
| Leds run through the headlights |
– |
– |
● |
● |
● |
| LED through the taillight |
● |
● |
● |
● |
● |
| iHBC intelligent high beam control |
– |
– |
– |
● |
● |
| Four-door window lift with one click |
● |
● |
● |
● |
● |
| Power skylight |
– |
● |
– |
● |
● |
| External rearview mirror power adjustment |
● |
● |
● |
● |
● |
| Exterior rear-view mirror is electrically heated to remove fog |
● |
● |
● |
● |
● |
| External rearview mirror power folding |
– |
– |
– |
● |
● |
| 215/60R16 aluminum alloy five-spoke wheels |
● |
● |
– |
– |
– |
| 215/55R17 aluminum alloy five-spoke wheels |
– |
– |
● |
Low wind resistance |
Low wind resistance |
| Body color |
Blue water, silver aurora, black at midnight, white at dawn, grey at dawn |
| AI intelligent cockpit |
|
|
|
|
|
| Electronic shield |
● |
● |
● |
● |
● |
| Parking guard mode |
– |
– |
– |
● |
● |
| 10.25-inch HD meter |
● |
● |
● |
Digital liquid crystal |
Digital liquid crystal |

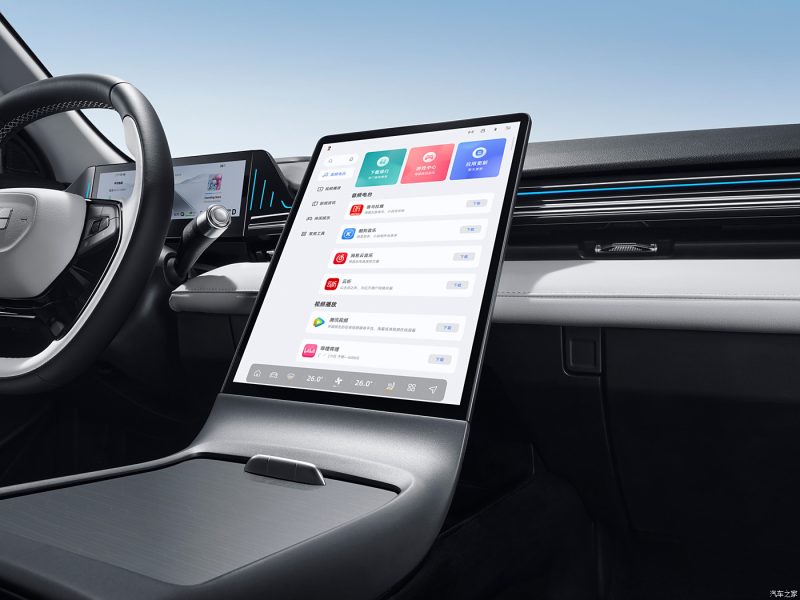

| 14.6-inch touch HD center control screen |
● |
● |
● |
● |
● |
| Galaxy Flyme Auto Smart cockpit |
● |
● |
● |
● |
● |
| Unbounded space |
● |
● |
● |
● |
● |
| Flyme Link mobile interconnection |
● |
● |
● |
● |
● |
| Huawei HiCar and Carlink |
● |
● |
● |
● |
● |
| 750 Autonavi |
● |
● |
● |
● |
● |
| Online multimedia |
● |
● |
● |
● |
● |
| Voice assistant wake word |
你好，银河 |
| 4G network + in-car Wi-Fi |
● |
● |
● |
● |
● |
| Global OTA cloud upgrade |
● |
● |
● |
● |
● |
| Mobile APP remote control system |
● |
● |
● |
● |
● |
| Hd tachograph |
– |
– |
– |
● |
● |
| Number of speakers |
6 |
6 |
6 |
6 |
8 |
| Dark grey interior |
o |
o |
o |
o |
o |
| Warm brown interior |
o |
o |
o |
o |
o |
| Microfiber anti-bacterial steering wheel |
– |
● |
– |
● |
● |
| Sunglasses visor |
– |
– |
● |
● |
● |
| Visor with makeup mirror |
● |
● |
● |
● |
● |
| Visor with makeup mirror and light |
– |
– |
– |
● |
● |
| Leather seat |
● |
● |
● |
● |
● |
| Main seat 6-way electric adjustment |
Manual operation |
● |
Manual operation |
● |
● |
| Passenger seat 4-way electric adjustment |
Manual operation |
● |
Manual operation |
Manual operation |
● |
| Massage seat for the main driver |
– |
● |
– |
– |
● |
| The main seat is ventilated |
– |
● |
– |
– |
● |
| Front seat heating |
– |
● |
– |
– |
● |
| Second row child safety seat fastening ISOFIX |
● |
● |
● |
● |
● |
| Intelligent automatic air conditioner |
● |
● |
● |
● |
● |
| Second row air conditioning outlet |
● |
● |
● |
● |
● |
| CN95 high efficiency compound air conditioning filter element |
● |
● |
● |
● |
● |
| 50W mobile phone wireless charging |
– |
– |
– |
– |
● |
| USB port x 2+Type-C port x 1 |
● |
● |
● |
● |
● |
| Front 12V power supply |
● |
● |
● |
● |
● |
| Remote key |
● |
● |
● |
● |
● |
| Smart Bluetooth key for mobile phone |
● |
● |
● |
● |
● |
| Keyless entry |
● |
● |
● |
● |
● |
| Noninductive priming |
● |
● |
● |
● |
● |
| Native safety |
|
|
|
|
|
| The battery cell is tested by acupuncture |
● |
● |
● |
● |
● |
| Integrated thermoformed boron-steel door ring |
● |
● |
● |
● |
● |
| The rear seats are strongly protected by V-beams |
● |
● |
● |
● |
● |
| Dual front airbags |
● |
● |
● |
● |
● |
| Front side dual airbags |
● |
● |
● |
● |
● |
| Front/rear integrated dual safety air curtain |
● |
● |
● |
● |
● |
| TPMS intelligent tire pressure display |
Tire pressure alarm |
Tire pressure alarm |
● |
● |
● |
| Rear parking radar |
● |
● |
● |
● |
● |
| Astern image |
● |
– |
● |
– |
– |
| 540° HD panoramic image |
– |
● |
– |
● |
● |
| Front seat belt with limited force |
● |
● |
● |
● |
● |
| Front/rear seat belts not fastened |
Front row |
Front row |
● |
● |
● |
| Engine electronic anti-theft |
● |
● |
● |
● |
● |
| Bosch One Box body electronic stability control |
● |
● |
● |
● |
● |
| ABS+EBD |
● |
● |
● |
● |
● |
| BA brake assist system |
● |
● |
● |
● |
● |
| TCS traction control system |
● |
● |
● |
● |
● |
| HHC ramp assist |
● |
● |
● |
● |
● |
| CBC brake control system for corners |
● |
● |
● |
● |
● |
| EPB electronic parking system |
● |
● |
● |
● |
● |
| AUTO HOLD Automatic parking |
● |
● |
● |
● |
● |
| CCS cruise control |
● |
● |
● |
– |
– |
| Level 2 Automatic driver assistance |
– |
– |
– |
● |
● |
| ICC Intelligent Cruise Assist (including lane centering) |
– |
– |
– |
● |
● |
| ACC Adaptive cruise Assistance |
– |
– |
– |
● |
● |
| FCW forward collision warning |
– |
– |
– |
● |
● |
| AEB automatic emergency braking system with pedestrian identification |
– |
– |
– |
● |
● |
| LDW lane departure warning |
– |
– |
– |
● |
● |
| LDP lane departure prevention |
– |
– |
– |
● |
● |
| LKA lanes remain assisted |
– |
– |
– |
● |
● |
| ELKA emergency lanes remain assisted |
– |
– |
– |
● |
● |
| TSR traffic sign recognition |
– |
– |
– |
● |
● |
| Note: 1, the identifier “●” indicates that there is such equipment, the identifier “-” indicates that there is no such equipment; 2. The content of this configuration table is compiled according to the vehicle configuration status information at the time of printing; 3. In order to better meet customer needs, Geely Galaxy continuously develops and improves cars. Some configurations and rules of models sold in the market may be different from this configuration table. For details, please consult Geely Galaxy authorized dealers. Subject to change without notice. |
